DScope PM ALIGNER & DScope-PM
劷 True Koehler optical design for perfectly homogeneous lighting
劷 BLINK-Automated Visual Inspection software detects in real-time the fiber
location and analyses surface defects
劷 Unique ability to define independent gain and contrast levels for the fiber and
ferrule regions for optimized simultaneous viewing of both areas
劷 Adaptors for all PC & APC, SF & MF connectors
劷 High-speed USB 2.0 for live digital image
劷 Field-stop and Aperture-stop diaphragms
劷 Deep-blue long-life LED light source
劷 Second oblique light source for surface cleanness inspection
劷 Ergonomic fine focus control
劷 Focus quality indicator in D-Scope software
劷 Software and Hardware automation capabilities
劷 Also available as analog output for use with a CRT screen only

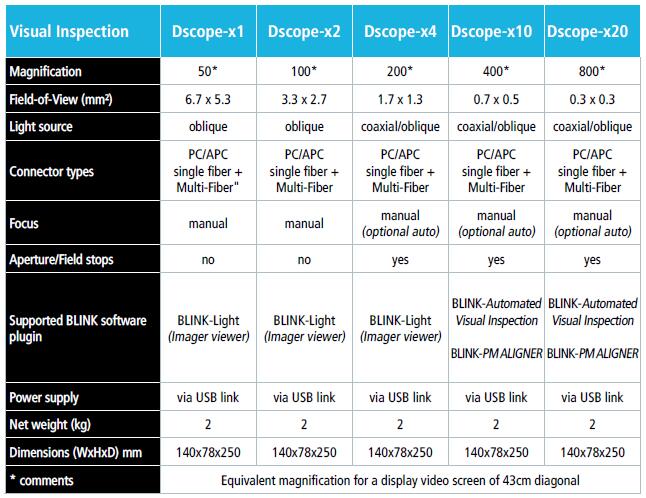

This unique microscope combines high quality optics with a modern and
ergonomic design ideally suited to fiber optic inspection applications.
Until the D-Scope, most microscopes were suffering from poor illumination quality yielding variable and non-reproducible
image quality even amongst scopes of the same kind.
PM ALIGNER and DScope-PM are two products which will enable you to accurately mechanically align the stress
elements of a PANDA Polarisation-Maintaining fibre with the key of a connector. PM ALIGNER features an exceptional
long working distance of 65mm giving the operator a spacious workspace between the optical measuring head and
the connector endface
DScope-PM combines the high quality inspection image of the DScope microscopes with its low cost advantage.
The BLINK-PM software module will measure in real-time the angular alignment of the stress elements and let the
operator rapidly position them to the required angular position.
